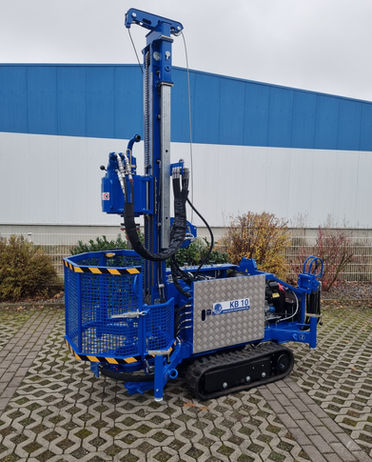

KB10 - Compact drilling rig for confined work areas
The KB10 was specifically developed for drilling projects where mobility, safety, and efficient workflows are crucial. Thanks to its compact design, powerful feed system, and flexible drilling methods, the machine is particularly suitable for confined construction sites, hard-to-reach locations, or work in existing structures where larger machines are uneconomical or simply impractical.
The KB10 enables precise and economical well drilling, geothermal drilling, foundation drilling, and soundings. The combination of a robust rubber track chassis, powerful clamping and lifting forces, and an optional electric drive ensures high performance, short downtimes, and maximum flexibility – even under challenging soil and environmental conditions.
Result: less setup time, faster work, lower overall costs per meter.
Dimensions
Transport length
Transport height
Transport width
Weight
from 3,000 mm
1,600 mm
720 mm
from 1,200 kg
Technical features
Undercarriage
Engine
Hydraulic system
Drilling mast
Rubber track undercarriage
Length of the undercarriage: 1,150 mm
Telescopic extension to 970 mm width
4 mechanical support spindles, swivelling 90° at the front
Honda gasoline engine, 15 kW, air-cooled
Optional: electric motor 15 kW, 400 V/50 Hz
Triplex gear pump
Hydraulic tank: 70 l
Bio-hydraulic oil based on esters HEES46
Feed system with hydraulic cylinders and reeved flyer chains
Lifting capacity: 20 kN
Feed force: 15 kN
Feed lengths: 1,300 mm 1,800 mm 2,300 mm
Equipment and expansion options
Drilling head
Lift clamp
winch
Telescopic mast extension
Transmission with 2 mechanical shift stages
1st gear: 2,500 Nm; 50 rpm
2nd gear: 460 Nm; 240 rpm
Optional: Flushing spindle with flushing head
3-piece set with clamping inserts for various diameters
Max. clamping diameter: 219 mm
Lifting capacity: 75 kN
Lifting height: 200 mm
Tensile force: 35 kN
Tensile force: 8 kN
Rope capacity: 40 m
Rope diameter: 7 mm
Additional usable working height for rope operation: 1,300 mm
Areas of application
Well drilling
Soil investigation
Ordnance survey
Drilling methods
Cased dry drilling
Drilling with a hollow auger
Directional drilling
Down-the-hole hammer drilling
Drill diameter
max. 219 mm
max. 185 mm
max. 190 mm
approx. 150 mm
Drilling depth
approx. 15 m
approx. 15 m
approx. 50 m
approx. 50 m
